Mission 57 · Pro PLC programming exercise

The right bottle, every time

Track items by encoder through a queue, and verify every reject.

Reject every bottle the camera fails, and only those, with up to ten bottles between camera and jet, a belt that changes speed, bottles taken off by hand, and a confirm eye that must see every reject.

This mission is part of ProTry the full course, every mission and the expert challenges free for 7 days. No card needed.

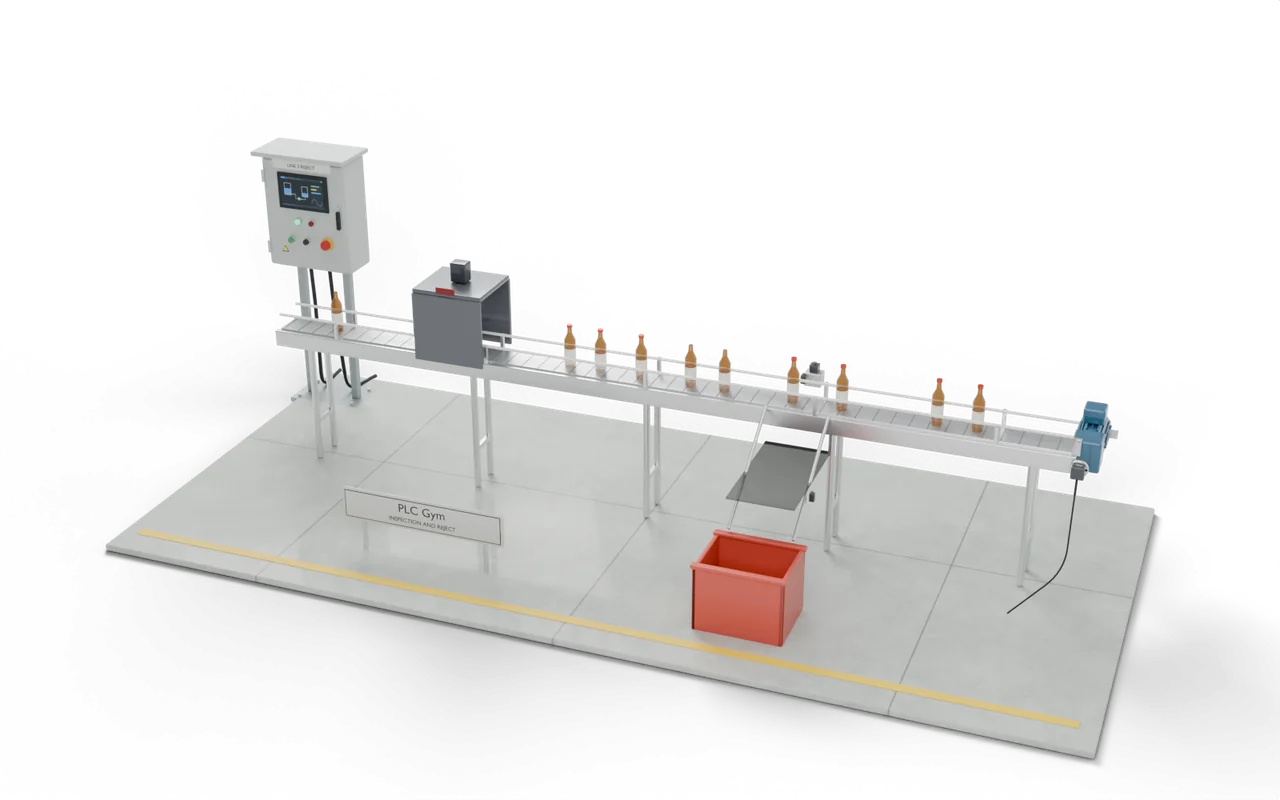

The 3D encoder tracking reject system this mission runs on Pro mission
Test replay

Bad bottle out, good bottle on

Test 1 of 4
Set by the testChecked by the testStep 17 of 17 · 840 ms
Level
Expert
Time
About 90 min
Reward
+1200 XP
Rig
3D encoder tracking reject system
Siemens editors
SCL, LAD
Rockwell editors
Structured Text, Ladder
Course stage
30. Machine lab 5: expert systems
Automatic tests

What the tests check

  1. Every bottle is queued with its encoder count at the trigger eye.
  2. The camera's late answer marks the right (newest) bottle.
  3. Bad bottles get 30 mm of air exactly 2135 mm later; good ones never do.
  4. A bottle that is no longer there is not blasted.
  5. An unconfirmed reject latches RejectFail and stops the line.
  1. Try it Use the buttons below the model and watch the rig respond.
  2. Test solution Every check runs on your code in one press.
  3. Replay If one fails, step through it one scan at a time to see why.
Why it matters

Where you’d see this on site

Every packing line with a checkweigher, metal detector or vision system has this tracking. It is one of the most common things a commissioning engineer gets called out to fix.

Track by time and the first slow-down rejects the wrong bottle. Forget the late camera answer and you mark the bottle behind. Skip the confirm and a blocked nozzle lets bad product ship.

Where you'd find thisReject the right bottle, every time, at any speed

Bottling, food and pharma lines inspect every item and reject the bad ones further down the line. Because many items sit between the two, the controller keeps a queue of positions measured by an encoder on the conveyor, not by time.

  1. VisionTrigger, then result
  2. QueueEncoder positionsYou are here
  3. Jet2135 mm later
  4. ConfirmIn the bin
On a real site: places, parts and safety
  • Bottling and canning lines checking fill and caps
  • Pharma packing lines checking labels and codes
  • Food lines with metal detectors and checkweighers

In food and pharma, a failed reject is a product safety event: lines stop rather than let a bad item through.

Air jets are loud and can blow fragments: real ones sit behind guards.

The sizes, timings and cutaways are teaching choices, not a drawing of any one real installation.
